Little Willie to Mk IV
The First British Tanks
Mk I Daimler Engine
Mk I, Bovington, 1969
Here is a short pictorial summary of the earliest British tanks, from the test vehicle "Little Willie", through to Mk IV.

 I have chosen this grouping of vehicles because they form a reasonably well-defined family, all with the same basic mechanical arrangements and Daimler engine of ~105hp.

 "Little Willie" and Mk I are distiguished by their tail wheels, intended to assist in steering, and in trench crossing. These were later abandoned as being unnecessary.

The subsequent marks up to Mk IV were very similar internally to the Mk I. Major internal changes are most noticeable in Mk V and its successors, following the replacement of the Daimler engine with a purpose designed Ricardo engine.

 Of course, Mk I is distinguished by possessing a steering wheel to control the tail wheels, and althought not especially noticeable internally to the casual observer, the resiting of the fuel tanks in the Mk IV to externally between the rear horns, instead of on each side of the driver and commander, must have been a great improvement for the crews.

 I hope these pictures will be of interest, and maybe also inspire a modeller or two to start constructing some of these vehicles.


Model of Little Willie

 Note circular blanking plate for proposed turret,
and the tail wheels that Mk I inherited.
The original vehicle was built by Fosters in 1915,
and was powered by a 105hp Daimler engine.

 This is the 1/76 resin model by Matador.


Inside Little Willie

Not much to see,
but the differential housing is clearly visible.
It is similar to that used in the subsequent early tanks.

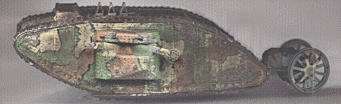

Model of Mk I Female

 A conversion from the Airfix 1/76 Mk I, which is actually a Mk II with tail wheels.

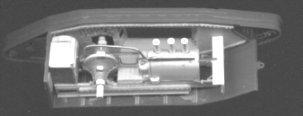

Mk I internal details

Under construction in 1/76 scale.

Major features (l-r) are radiator, differential housing, Daimler engine, with three vertical exhausts, and, across the front, the strut on which the driver & commander sit.

Click here for more details on this model.

Mk II Female

 Seen here at Bovington, the Mk II was envisaged as a training vehicle, and lacked proper armoured protection for the crew. Improvements over Mk I included a modified, raised, roof hatch, and a flash eliminating exhaust arrangement on later Mk IIs.

Mk III was similar, but with armour to Mk IV standard.

Inside Mk II

 Looking aft from the left hand sponson

Inside Mk II

 The Daimler engine

The Emhar 1/72 Mk IV

 As slated in the modelling press.
Not a good model, but it does show the short 6 pounder introduced to replace the long barrelled version used in the earlier marks of male vehicle.

Inside Mk IV

 Looking aft into the driver's visor

Mk IV Rear, Showing Fuel Tank

 Emhar, please note the position of the hatch on the fuel tank enclosure!

Six pounder (short barrelled)

 As used in Mk IV and onward
